Are you tired of unreliable 12V power and dead coach batteries every time you plug into shore power? If so, this Powermax PM4 converter review will give you the definitive answer on whether this unit deserves a place in your RV electrical system — and the short answer is yes, for most setups, it absolutely does. We break down everything you need to know right here in our tech guides section, from real-world applications to the wiring mistakes that quietly destroy performance.

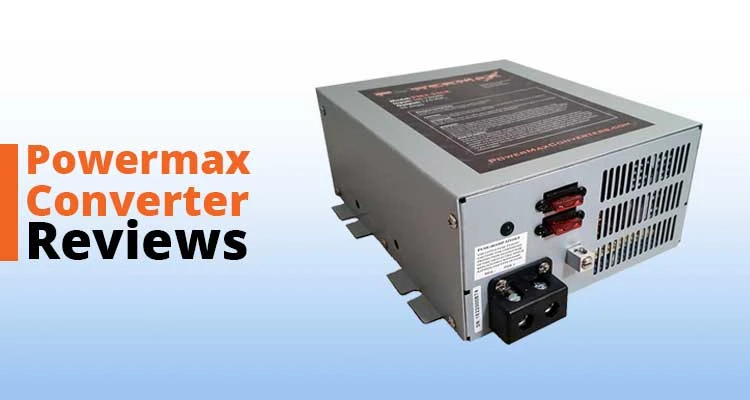

The Powermax PM4 is a combination DC power converter and smart battery charger. It takes 120V AC shore power and converts it to a regulated 13.6V DC output — powering your 12V appliances while simultaneously charging your coach batteries. Available in four models ranging from 45 to 100 amps, it covers everything from small pop-up trailers to large Class A motorhomes. The four-stage smart charging profile — bulk, absorption, float, and equalization — is what separates it from basic single-stage converters and why battery longevity improves measurably after switching.
Understanding how your converter, battery bank, and solar charge controller interact is critical to a stable RV electrical system. Get that relationship right and everything runs seamlessly. Get it wrong and you're chasing symptoms for months.
Contents
Not every converter fits every use case. The PM4's strengths become obvious once you match the unit's design to your actual lifestyle and power demands.
Full-timers put their electrical systems under sustained, daily stress. The PM4 is built for exactly that. Here's what makes it the right choice for continuous use:
Pairing the PM4 with a quality lithium battery bank takes your power setup to another level. If you're considering that upgrade, our deep dive into Battle Born LiFePO4 batteries covers everything from cycle life to real-world RV performance — it's the logical companion piece to this converter review.
Pro tip: If you're plugged into shore power most of the time, choose a PM4 model rated 20–30% above your calculated peak DC load. That thermal headroom translates directly into longer unit life.
Part-time RVers often underestimate what a quality converter does during storage. When your rig sits plugged in for weeks between trips, the PM4's float mode keeps batteries at peak charge without overcharging them. That single feature prevents sulfation — the primary cause of early battery failure in stored rigs. Seasonal campers also benefit from the unit's automatic fault detection, which self-diagnoses before delivering power after long periods of inactivity.
| PM4 Model | Output (Amps) | Best For | Typical RV Size | Approx. Weight |
|---|---|---|---|---|
| PM4-45 | 45A | Small trailers, pop-ups | Under 25 ft | ~6 lbs |
| PM4-55 | 55A | Mid-size travel trailers | 25–30 ft | ~7 lbs |
| PM4-75 | 75A | Fifth wheels, Class C | 30–36 ft | ~9 lbs |
| PM4-100 | 100A | Large Class A motorhomes | 36+ ft | ~12 lbs |
Installation is straightforward — but the order of operations matters. Do it wrong and you risk a fault condition on first power-up, or worse, a wiring short. Follow these steps exactly and you'll be up and running in under an hour.
Warning: Never connect AC input while the DC leads are disconnected. The PM4 needs a battery load present to regulate its output correctly during initial power-up.
The PM4's LED panel gives you real-time charging status without needing a multimeter. Here's what each indicator means:
Before you start any electrical work, verify your shore power outlet is delivering clean, correctly wired voltage. Our review of the best outlet testers covers the top options — the test takes 30 seconds and can save you hours of troubleshooting later.
Most owners install the PM4 and never revisit the setup. That's a missed opportunity. These adjustments separate a good installation from a great one.
The PM4 supports multiple battery chemistries. Here's what you need to know for each:
If you're running solar panels alongside the PM4, the interaction between your charge controller and converter becomes critical. Both devices are feeding the same battery bank — and charge conflicts are a real problem. Our comparison of PWM vs MPPT solar charge controllers breaks down exactly how controller type affects charging behavior when multiple power sources share a bank. It's required reading before you mix sources.
For a deeper technical foundation on how DC conversion works at the component level, the Wikipedia overview of AC-to-DC power supplies provides solid background on the underlying technology.
Pro insight: Lithium battery owners should confirm their BMS absorption voltage before connecting the PM4. Most LiFePO4 packs need 14.4–14.6V during absorption — the PM4's 13.6V float is safe, but absorption stage voltage is where chemistry mismatches cause real damage.
Undersized or poorly routed wiring is the number-one cause of poor PM4 performance in the field. Stick to these non-negotiable rules:
These are the errors you find documented in RV forums months after installation — when diagnosing and fixing them is far more painful than avoiding them upfront.
The PM4 runs cool by design, but it still generates heat under sustained load. Mounting it in a sealed or cramped compartment traps that heat and triggers thermal shutdown. Watch for these symptoms:
The fix is simple: confirm 6 inches of clearance on all sides before mounting. If your compartment lacks natural airflow, add a small 12V exhaust fan. A static pressure fan positioned to push warm air out of the enclosure works well in tight spaces — they're inexpensive and effective.
This is the most common purchasing mistake. RV owners buy the 45A model and then wonder why batteries never reach full charge and the unit runs warm. Calculate your total 12V load before purchasing — not after.
Use this formula: Total Watts ÷ 12 = Minimum Amps Required. Then add 20% headroom. Common 12V loads to include in your calculation:
Add those figures, apply your 20% buffer, and you have your minimum model. Sizing down to save $40 costs you battery health, converter longevity, and peace of mind — it's never worth it.
Yes, with one important check. The PM4's float voltage of 13.6V is safe for lithium batteries. However, you need to verify that the unit's absorption stage voltage matches your battery's BMS specifications — most LiFePO4 packs need 14.4–14.6V during absorption. Confirm that alignment before connecting, and you'll have a reliable pairing.
The 45A, 55A, 75A, and 100A models differ only in output amperage. The four-stage charging technology, build quality, and feature set are identical across the entire lineup. Choose your model based on your calculated total 12V DC load plus 20% headroom — the only variable that should drive your decision is the amp rating you actually need.
No. The PM4 is a power converter, not an inverter. It requires 120V AC input to produce any DC output. Without shore power, the unit produces nothing. For off-grid use, you need a separate battery bank charged by solar or a generator — the PM4 works alongside those sources during hookups, but cannot replace them when you're dry camping.
Powermax backs the PM4 with a two-year limited warranty covering manufacturing defects. Register your unit immediately after purchase and keep your proof of purchase. Early-life failures typically appear within the first 30 days, so run the unit through at least five full charge cycles right after installation and confirm all four charging stages activate correctly.
